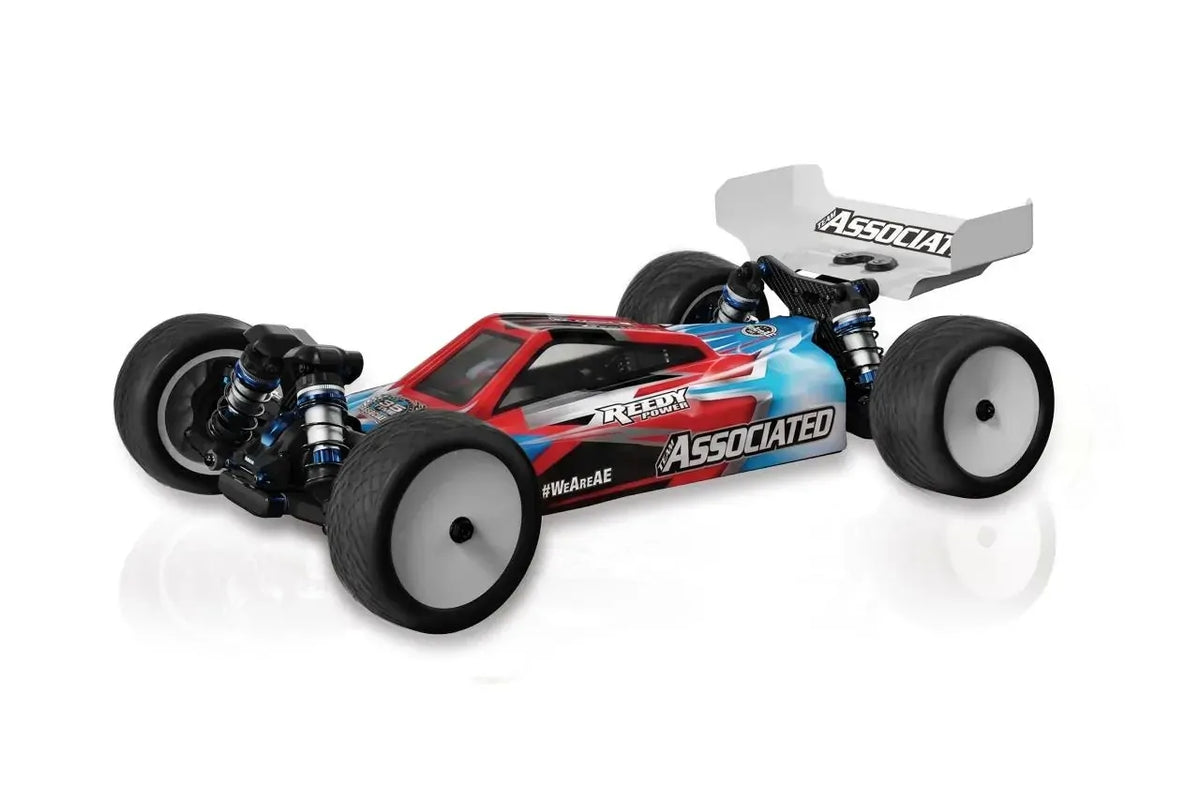

ASS90059 Team Associated RC10B84.1D Team Kit

The Team Associated RC10B84.1D Team Kit is a competition-focused 1/10 scale 4WD off-road buggy developed for precision, adjustability and consistent performance across modern race tracks.

The RC10B84.1D builds on Team Associated's latest 4WD platform with updates throughout the chassis, suspension, steering and drivetrain. A new Wide Tongue chassis design improves durability, supported by updated V2 side rails and wider A and B suspension mounts.

At the front, the B84.1D uses 73mm Gull Wing suspension arms combined with a dedicated carbon fibre front shock tower. A moulded shock tower cover protects the assembly, while a moulded front bumper is included along with an optional bumper design that covers the anti-roll bar mount.

The steering system receives V2 steering posts and bellcranks, designed to reduce vertical movement in the steering rack. Optimised bellcrank and steering rack geometry also improves bump-steer control across different ride heights, helping provide more consistent steering response as chassis setup changes.

Height-Adjustable Gearboxes

Moulded height-adjustable front and rear gearboxes give racers additional drivetrain setup options.

An additional +2 rear gearbox is included specifically for high-grip conditions, expanding the tuning range available for different track surfaces.

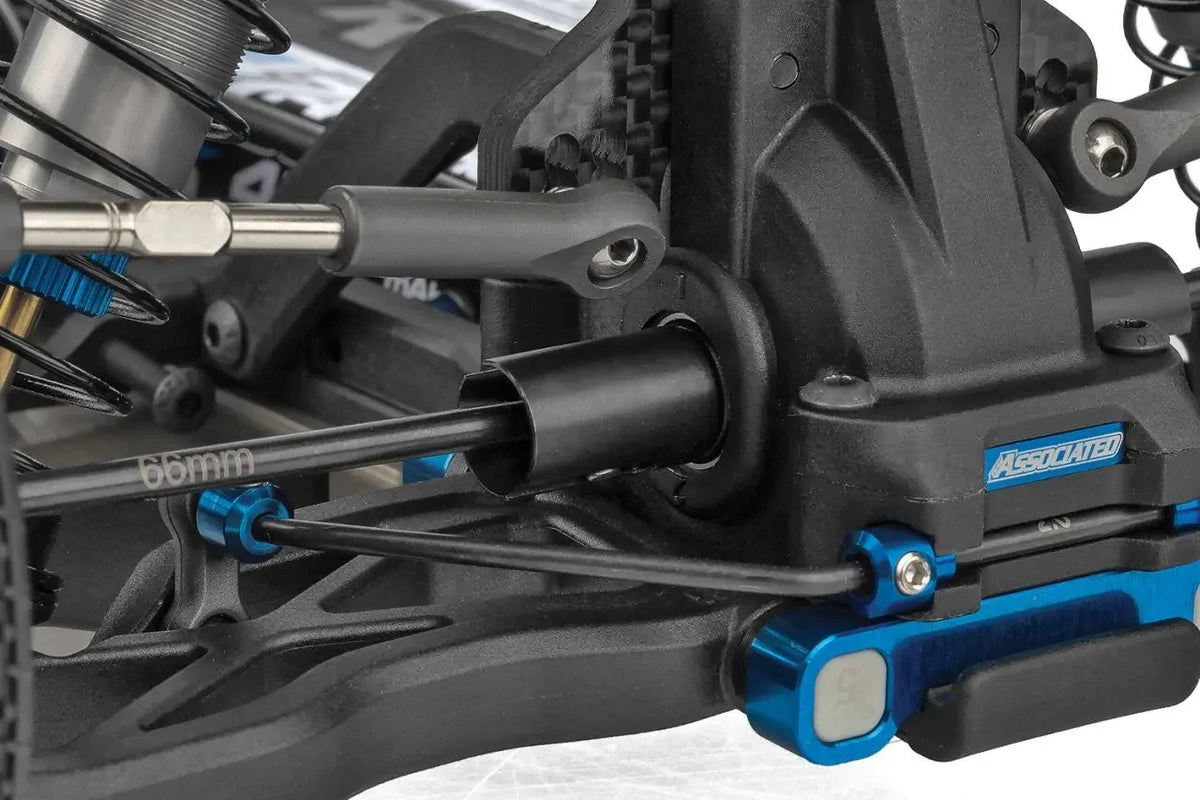

The drivetrain also features long HD rear differential outdrives, 66mm rear CVA bones, moulded ring and pinion gears and a centre differential.

Adjustable Chassis Flex

The RC10B84.1D provides extensive chassis flex tuning through upper and lower chassis bracing at both the front and rear.

This allows racers to alter chassis characteristics to suit different grip levels, track surfaces and driving styles.

At the centre is a 2.5mm tapered 7075-T6 aluminium chassis with 10 degrees of kick-up and an improved departure angle. The motor can also be positioned forward or rearward to further adjust vehicle weight distribution.

Extensive Suspension Tuning

Both standard and HRC High Roll Centre rear hubs are supplied, giving racers additional rear suspension geometry options.

Insert-adjustable caster blocks are also included with 0°, ±1° and ±2° inserts, providing a broad range of front-end geometry adjustments.

New 0.7mm A and D mount shims provide additional suspension setup options.

Adjustable Battery Position

The highly adjustable battery holder uses convenient thumb tabs for quick battery removal.

Battery positioning can be fine-tuned to alter weight bias, allowing racers to adjust chassis balance without major changes to the vehicle.

13mm Big-Bore Shocks

Team Associated's 13mm Big-Bore shocks provide the suspension damping required for modern competition surfaces.

The suspension package is completed with heavy-duty 3.5mm turnbuckles and ballcups, combining strength with precise adjustment.

Low-Profile Aerodynamics

The RC10B84.1D uses a low-profile body together with a 7-inch rear wing.

Two rear wing mounting heights are included, providing another tuning option for adjusting rear aerodynamic characteristics.

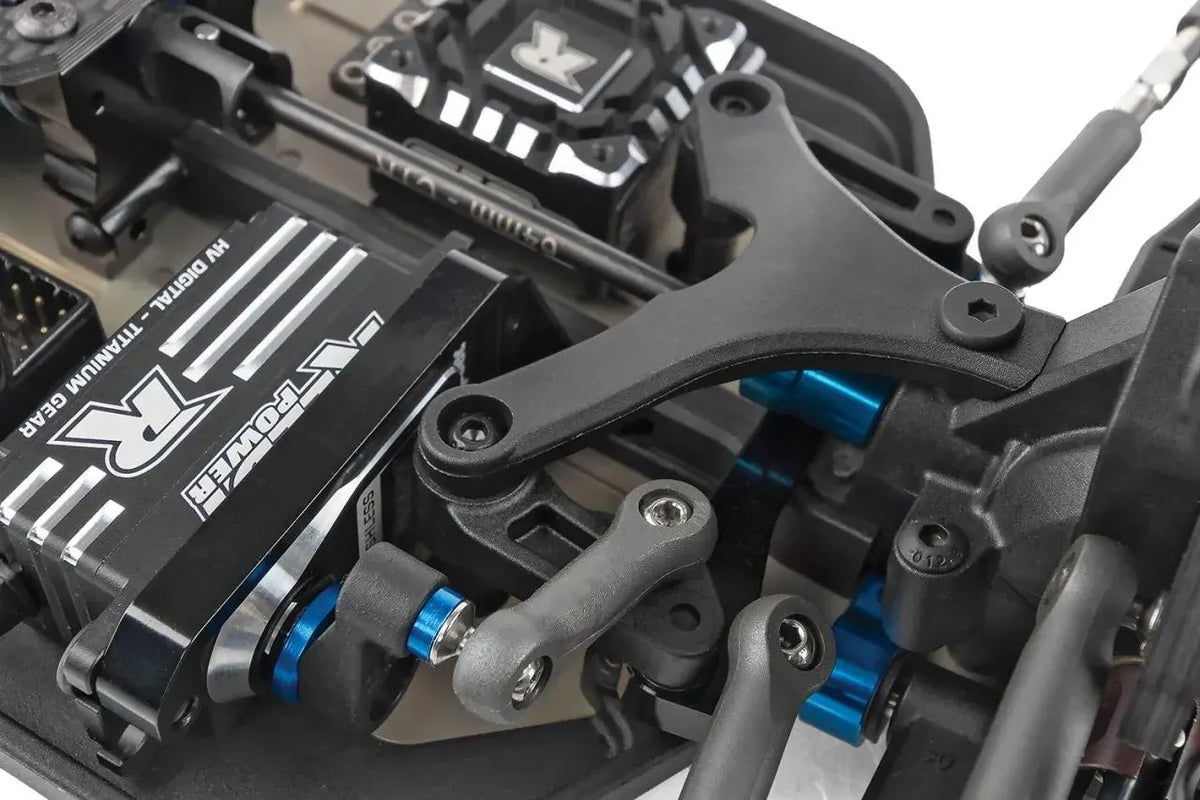

An aluminium centre-mounted servo mount keeps the steering servo securely positioned within the chassis.

Required Items

• Brushless Motor
• Pinion Gear
• Electronic Speed Controller (ESC)
• Steering Servo
• Transmitter
• Receiver
• Battery
• Compatible Battery Charger
• Tyres
• Wheels
• Polycarbonate-Specific Paint
• Assembly Tools

Specifications

Brand: Team Associated
Model: RC10B84.1D Team Kit
SKU: 90059
Scale: 1/10
Vehicle Type: Competition Off-Road Buggy
Power Source: Electric
Drive: 4WD
Assembly Level: Kit
Chassis: 7075-T6 Aluminium
Chassis Thickness: 2.5mm Tapered
Chassis Kick-Up: 10°
Chassis Design: Wide Tongue
Side Rails: V2
Front Suspension Arms: 73mm Gull Wing
Front Shock Tower: Carbon Fibre – 73mm Geometry
Front Shock Tower Cover: Moulded
Steering: V2 Posts & Bellcranks
Caster Adjustment: 0°, ±1° & ±2° Inserts
Rear Hubs: Standard & HRC Included
Gearboxes: Moulded Height-Adjustable Front & Rear
Additional Rear Gearbox: +2 High-Grip Option
Rear Differential Outdrives: Long HD
Rear CVA Bones: 66mm
Centre Differential: Included
Ring & Pinion Gears: Moulded
Motor Position: Forward / Rearward Adjustable
Battery Holder: Adjustable with Thumb Tabs
Servo Mount: Aluminium Centre-Mounted
Turnbuckles: 3.5mm
Shocks: 13mm Big-Bore
Rear Wing: 7"
Rear Wing Mount: Two Heights Included
Body: Low Profile
A/D Mount Shims: 0.7mm

Key Features

• New Wide Tongue chassis for increased durability
• V2 side rails
• Wide A and B mounts
• 73mm Gull Wing front suspension arms
• Carbon fibre front shock tower
• Moulded front shock tower cover
• V2 steering posts and bellcranks
• Optimised steering rack geometry
• Improved bump-steer control across different ride heights
• Long HD rear differential outdrives
• 66mm rear CVA bones
• New 0.7mm A and D mount shims
• Moulded front bumper
• Optional bumper covering anti-roll bar mount
• Height-adjustable front and rear gearboxes
• Additional +2 rear gearbox for high-grip conditions
• Upper and lower front chassis bracing
• Upper and lower rear chassis bracing
• Standard rear hubs included
• HRC High Roll Centre rear hubs included
• Adjustable caster blocks
• 0°, ±1° and ±2° caster inserts
• Forward and rearward motor positioning
• Highly adjustable battery holder
• Quick-release battery thumb tabs
• 2.5mm tapered 7075-T6 aluminium chassis
• 10° chassis kick-up
• Improved departure angle
• Centre differential included
• Moulded ring and pinion gears
• Aluminium centre servo mount
• Two rear wing mount heights
• 7-inch rear wing
• Low-profile body
• 3.5mm turnbuckles and ballcups
• 13mm Big-Bore shocks
