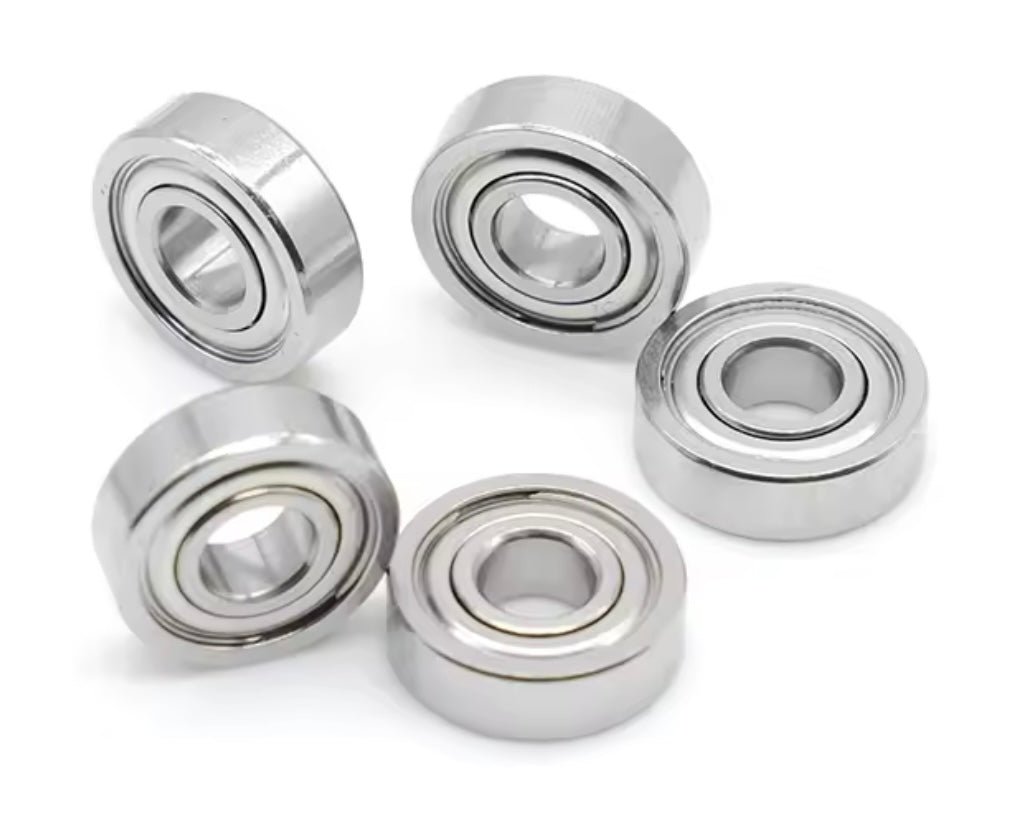

ABEC-9 5X13X4 METAL SHIELD

TECHNICAL SPECS

Model: 695ZZ
Accuracy Class: ABEC-9
Bearing Type: Flange Ball Bearing
Bearing Material GCr15 Bearing Steel
Ball Material: GCr15 Bearing Steel
Seal Type: Metal Seal
Inner diameter (d):5 mm
Outer diameter (D): 13mm
Width (B):4mm
Dynamic load (Cr) (N): 916
Static load (Cor) (N): 346
Limiting speed (oil) (X1000 RPM):46
Speed limit (oil) (X1000 RPM): 52
Clearance level: C0
